Plastic Formwork for Culverts: Solving the Confined Space & No-Crane Challenge
How Ecoformwork (PP long-fiber formwork) helps contractors build culverts and utility tunnels faster in confined spaces without heavy lifting equipment.
Introduction
Constructing box culverts and utility tunnels is one of the most challenging tasks in civil engineering. Unlike standard residential buildings, culvert projects often come with a unique set of brutal challenges:
Extreme Environments: Deep trenches, muddy ground, and high humidity.
Confined Spaces: Narrow working areas that restrict worker movement.
No Heavy Machinery: Many infrastructure sites in Southeast Asia, Africa, and Central Asia lack access to cranes or hoisting equipment.
In these scenarios, traditional steel formwork is too heavy to be moved manually, and timber (plywood) formwork rots, swells, and gets destroyed within a few pours. How do you maintain speed and quality under these conditions?
This is where Ecoformwork Quick-Assembly Plastic Formwork changes the game.
1. The Hidden Costs of Timber and Steel in Culverts
Many contractors default to timber because the upfront price seems lower. However, in a wet trench, the hidden costs of wood quickly add up:
Swelling and Deformation: Wood absorbs water. When it swells, the concrete wall becomes uneven, requiring expensive secondary plastering.
Rapid Wear and Tear: Timber panels are stepped on, soaked, and easily damaged. They often need replacement after just 3 to 5 uses.
Safety Hazards: Rough timber panels leave residual nails that frequently cause hand and foot injuries to workers.
On the other hand, steel formwork requires a crane to lift it into the trench. If your site doesn't have a crane, or if the crane rental cost is too high, your project stalls.
2. Why Ecoformwork is the Ideal Solution for Confined Spaces

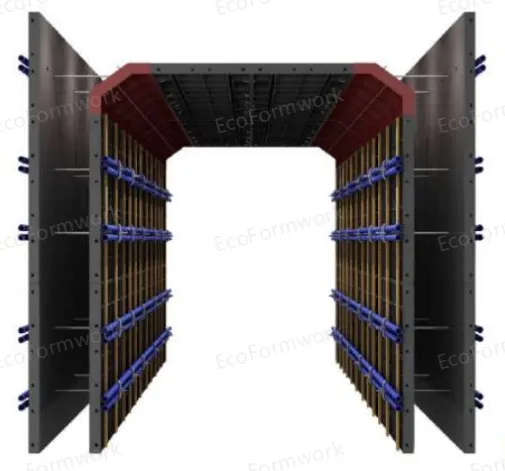

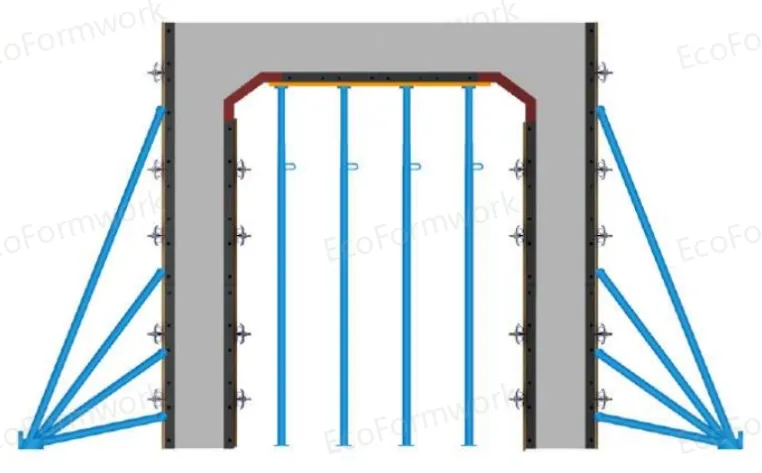

Our Ecoformwork system is engineered to survive the harshest underground conditions. Here is why it is the smartest investment for box culverts and utility tunnels:

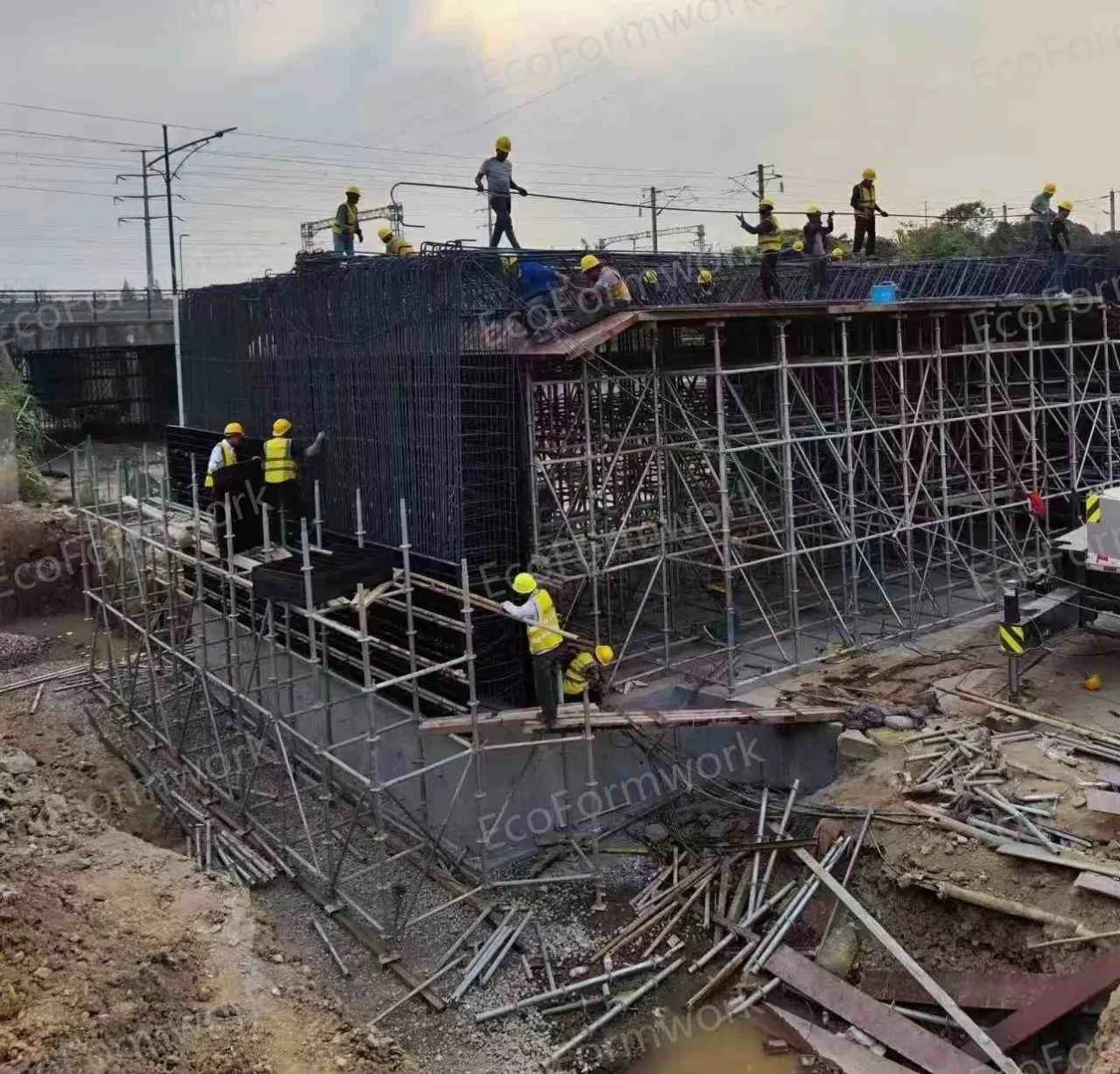

No Crane Needed (Lightweight Handling): Ecoformwork panels weigh only one-fifth of steel formwork. In narrow trenches, two workers can easily carry and position the panels by hand. You eliminate the cost of crane rentals and wait times.
Pin-and-Plate Connection (Fast Assembly): Instead of hammering nails or bolting heavy steel, our system uses a unified pin-and-plate connection. The standardized buckle design allows workers to assemble panels like Lego blocks. Field data shows our construction efficiency is over 10 times higher than traditional formwork.
High Strength & Impact Resistant: Made from Polypropylene (PP) with long fiber reinforcement via one-time molding, it won't deform under concrete pressure.

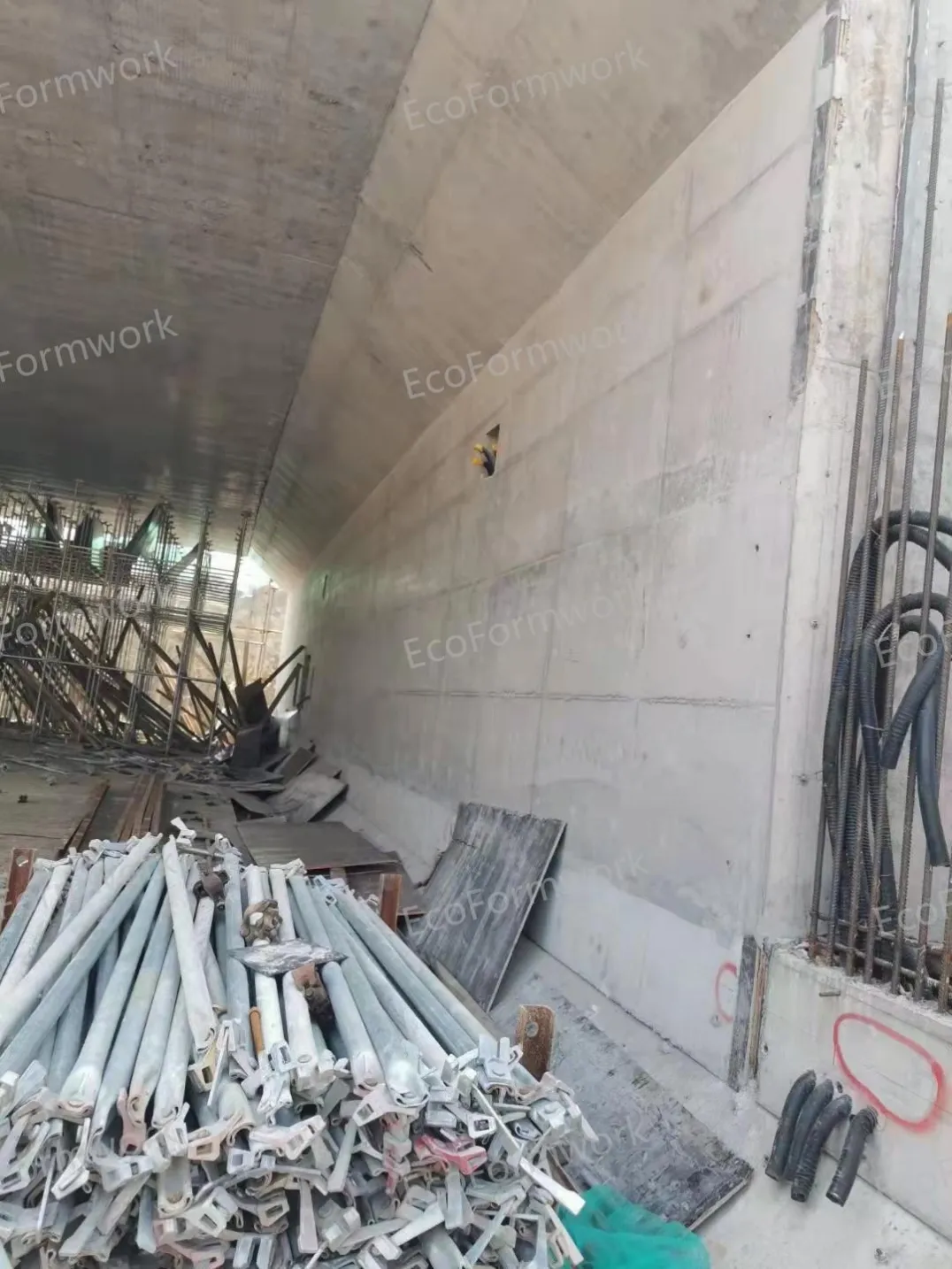

Excellent Demolding: The smooth surface gives you a perfect concrete finish inside the tunnel, reducing the need for manual finishing work.
3. Real Project Case: X208 Highway Culvert
Here is how a contractor in China used our system on the X208 Provincial Highway culvert project:
Site Condition: Narrow trench, standard sunny day.
The Challenge: Installing formwork quickly without heavy lifting equipment.
The Result: Using standard 400x1200mm and 600x1500mm Ecoformwork panels, a team of just 4 workers completed the assembly and dismantling. The flexible reinforcement design ensured the walls were perfectly straight, and the panels were immediately reused for the next section.
4. Calculate Your ROI: Up to 200 Reuses
Unlike timber which is thrown away, Ecoformwork has a turnover rate of up to 200 cycles. Even if you only use it 20 times on one culvert project, you can clean it and transfer it to your next tunnel. When you calculate the formwork cost per use, Ecoformwork pays for itself in a fraction of the time of wood.
Conclusion & CTA
Stop losing money on timber that rots and steel you can't lift. Whether you are building a box culvert, a utility tunnel, or a pier column, our engineers can help you find the perfect panel layout.
Send us your culvert drawings today for a free layout plan. Let's eliminate the crane and cut your formwork labor costs by 50%.
👉 Contact us via WhatsApp: +8613437133507
